Two-Post Overhead & Baseplate
2-Post
Lifts
ALI-certified Atlas Platinum overhead lifts and low-ceiling baseplate lifts from 8,000 to 15,000 lb. In stock on Vancouver Island, installed by SVI.
ALI-certified Atlas Platinum overhead lifts and low-ceiling baseplate lifts from 8,000 to 15,000 lb. In stock on Vancouver Island, installed by SVI.
A two-post lift is the workhorse of most shops. The vehicle rides on four arms at its factory lift points, so the wheels hang free and the whole underside is open: brakes, exhaust, suspension, transmissions, all within reach.
Overhead models run a cross-beam across the top of the columns, which keeps the floor between the posts completely clear. Baseplate models (also called bottom-plate) route their cables and hydraulics across a low plate on the floor instead, so they fit garages where an overhead beam won't clear the ceiling.
Not sure which fits your space? We measure ceiling height, check your slab and confirm your power before you buy. Compare 2-post vs 4-post lifts.
Clear-floor overhead lifts from 10,000 to 15,000 lb, for everything from passenger cars to heavy trucks.
10,000 lb ALI-certified overhead two-post with Double-S columns. Installs symmetric or asymmetric, with 3-stage front arms, 2-stage rear arms and a free 8-piece truck adapter set.
| Capacity | 10,000 lbs |
| Max Lift Height | 72 1/2" (81 1/2" with adapters) |
| Overall Height | 135 7/8" or 139 7/8" |
| Power | 220V single phase, 30A |
| Warranty | 5-yr structural / 2-yr cylinders / 1-yr power unit |
The black version of the Atlas PVL-10: a 10,000 lb ALI-certified overhead two-post with Double-S columns in 6mm steel, symmetric or asymmetric install and a free 8-piece truck adapter set.
| Capacity | 10,000 lbs |
| Drive-Thru | 91" asym / 99 1/2" sym |
| Max Lift Height | 72 1/2" (81 1/2" with adapters) |
| Power | 220V single phase, 30A |
| Warranty | 5-yr structural / 2-yr cylinders / 1-yr power unit |
12,000 lb ALI-certified overhead two-post for long-wheelbase trucks and passenger cars. Symmetric columns almost 123" apart, over 108" of drive-through and an ALLY AL3500 power unit.
| Capacity | 12,000 lbs |
| Max Lift Height | 73 5/8" (85 1/2" with adapters) |
| Overall Height | 13' 9" or 14' 9" |
| Drive-Thru | 109 5/8" |
| Power | 220V single phase, 30A |
| Warranty | 5-yr structural / 2-yr cylinders / 1-yr power unit |
The Atlas PVL-12 in black: a 12,000 lb ALI-certified overhead two-post with symmetric columns, over 108" of drive-through and a free 8-piece truck adapter set.
| Capacity | 12,000 lbs |
| Max Lift Height | 73 5/8" (85 1/2" with adapters) |
| Overall Height | 13' 9" or 14' 9" |
| Drive-Thru | 109 5/8" |
| Power | 220V single phase, 30A |
| Warranty | 5-yr structural / 2-yr cylinders / 1-yr power unit |
15,000 lb ALI-certified, commercial-grade overhead two-post for long-wheelbase and service trucks, with 8mm steel and an ALLY AL2300 power unit.
| Capacity | 15,000 lbs |
| Max Lift Height | 72 3/4" (87 1/2" with adapters) |
| Overall Height | 174 1/2" (+2 ft optional kit) |
| Drive-Thru | 107 1/2" |
| Power | 220V single phase, 30A |
| Warranty | 5-yr structural / 2-yr cylinders / 1-yr power unit |

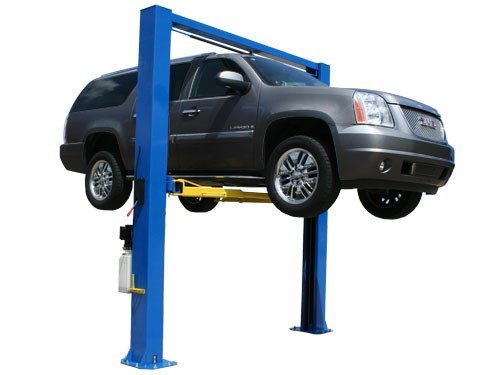

10,000 lb extra-wide, extra-tall overhead two-post with single-piece columns, built to lift everything from a Smart Car to a one-ton diesel dually.
| Capacity | 10,000 lbs |
| Overall Height | 152" (12' 8") |
| Max Lift Height | 74 3/4" (85 3/4" with adapters) |
| Drive-Thru | 106 7/8" |
| Power | 220V single phase, 30A |
| Warranty | 2-yr structural / 2-yr power unit |
No overhead beam, so these fit lower ceilings and still give you full underbody access.

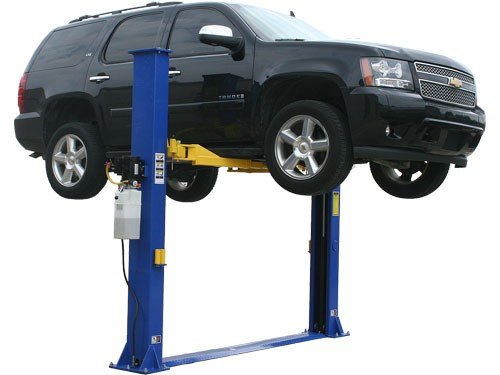

9,000 lb ALI-certified baseplate two-post with an open top and 9' 3 1/8" columns, ideal for lower ceilings. ALLY AL3000 power unit and dual-point lock release.
| Capacity | 9,000 lbs |
| Overall Height | 111 1/8" (9' 3 1/8") |
| Max Lift Height | 74 3/4" (83 3/4" with adapters) |
| Power | 220V single phase, 30A |
| Warranty | 5-yr structural / 2-yr cylinders / 1-yr power unit |
8,000 lb hobbyist-grade baseplate two-post with 9-foot columns that fit ceilings as low as 9' 3". Super-symmetric arms and a free 12-piece truck adapter set.
| Capacity | 8,000 lbs |
| Overall Height | 108" (9 ft) |
| Min. Ceiling | 9' 3" |
| Max Lift Height | 75 1/2" (86 1/2" with adapters) |
| Power | 220V single phase, 30A |
| Warranty | 5-yr structural / 2-yr cylinders / 1-yr power unit |
Economical 9,000 lb bottom plate two-post with 9' 3 1/2" columns for ceilings as low as 9' 6". Dual-point lock release and a free 8-piece truck adapter set.
| Capacity | 9,000 lbs |
| Overall Height | 111 1/2" (9' 3 1/2") |
| Min. Ceiling | 9' 6" |
| Max Lift Height | 74 1/2" (81" with adapters) |
| Power | 220V single phase, 30A |
| Warranty | 5-yr structural / 2-yr cylinders / 1-yr power unit |
12,000 lb commercial-grade baseplate two-post for shops without room for an overhead beam. Oversized columns, symmetric three-stage arms and two install widths.
| Capacity | 12,000 lbs |
| Overall Height | 122 1/2" (10' 2 1/2") |
| Max Lift Height | 77 1/2" (88 1/2" with adapters) |
| Drive-Thru | 103 5/8" or 109" |
| Power | 220V single phase, 30A |
| Warranty | 5-yr structural / 2-yr cylinders / 1-yr power unit |
Tell us your ceiling height, the vehicles you work on and your power supply. We'll recommend the right lift.
It mostly comes down to ceiling height. Overhead lifts need more headroom for the top beam but leave the floor completely clear. Baseplate lifts have no overhead beam, so they fit lower ceilings. The Atlas BP8000 installs under ceilings as low as 9' 3". We measure before you buy.
The two-post lifts we carry run on 220V single-phase power with a 30A breaker. We confirm your electrical supply before install.
The Atlas Platinum PVL series is ALI certified and carries a 5-year structural warranty. Check each lift's page for its certification and full warranty.
Yes. We anchor, level and load-test every lift we install, and we service and inspect lifts across Vancouver Island.
Yes. $0-down lease-to-own financing is available through Lease Link Canada, with terms up to 60 months. See financing options.
