Four-Post Service & Parking
4-Post
Lifts
Drive-on lifts for service, alignments and two-car storage, from 110V home-garage lifts to 14,000 lb commercial and alignment lifts. Sold and installed on Vancouver Island.
Drive-on lifts for service, alignments and two-car storage, from 110V home-garage lifts to 14,000 lb commercial and alignment lifts. Sold and installed on Vancouver Island.
A four-post lift carries the vehicle on its own wheels. You drive onto two runways and raise it, with no arms to set and no lift points to find. That makes four-post lifts quick to use and very stable, which is why shops choose them for alignments, oil changes and heavier trucks.
They double as parking lifts, too. Raise one vehicle, park a second one underneath, and you've turned one bay into two. That's why hobbyists and collectors love them.
The trade-off is underbody access: the runways sit under the wheels, so jobs that need the wheels hanging free call for a bridge jack or a two-post lift.
Drive-on lifts for home garages and restoration shops, including the Performance Hoist PH8S, one of our best-sellers.
9,000 lb ALI-certified four-post parking lift for homeowners and restoration shops. 81 1/4" under the runways, caster kit included, and it runs on 110V.
| Capacity | 9,000 lbs |
| Lifting Height | 86" to top of runway |
| Clearance Under Runways | 81 1/4" |
| Runway Length | 196 1/2" |
| Power | 110V, 30A breaker |
| Warranty | 5-yr structural / 2-yr cylinders / 1-yr power unit |

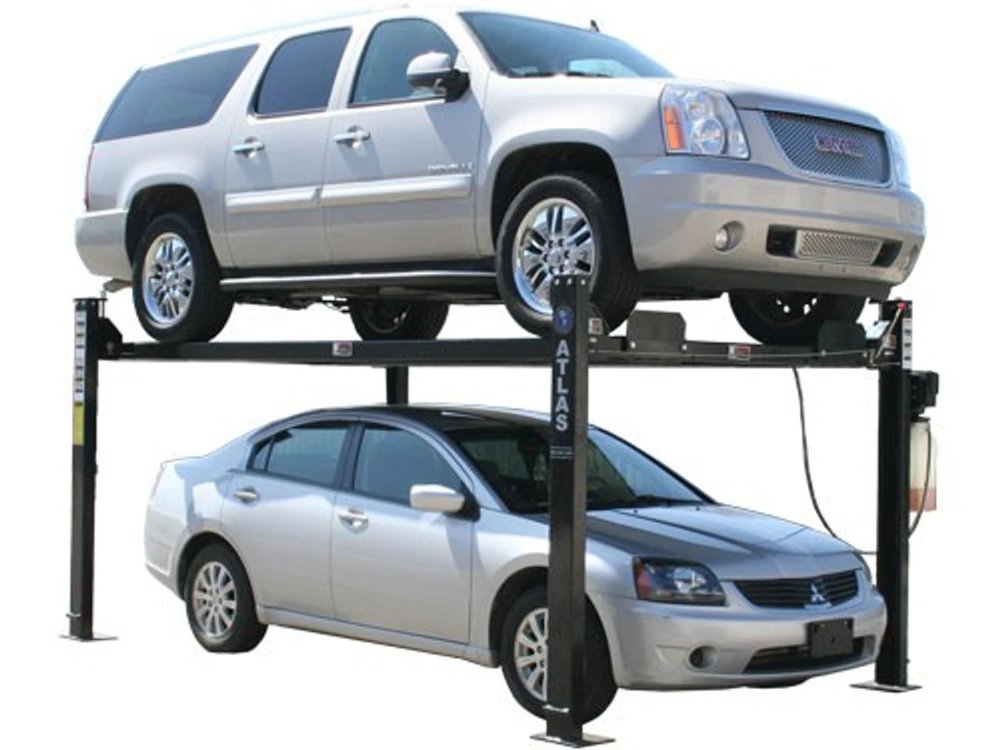

8,000 lb four-post storage and service lift for homeowners and restoration shops. No anchoring needed, casters included, and it runs on 110V.
| Capacity | 8,000 lbs |
| Lifting Height | 72" to top of runway |
| Clearance Under Runways | 67 1/2" |
| Power | 110V single phase, 30A |
| Warranty | 2-yr structural / 1-yr hydraulic |
8,000 lb four-post parking lift from aftermarket brand Performance Hoist — the lift that turns one bay into two. Drive on, park one car over another, and keep real service access underneath. Runs on standard 110V household power with just a 20-amp breaker, and castors, ramps, drip trays, and jack tray all come standard.
| Capacity | 8,000 lbs |
| Lifting Height | 72 1/2" to top of runway |
| Clearance Under Runways | 68" |
| Runway Length | 165" |
| Power | 110V single phase, 20A |
| Warranty | 3-yr structure & hydraulics |
Heavy-duty, extra-long four-posts for trucks, vans and fleets, including alignment lifts with slip plates and turntables.

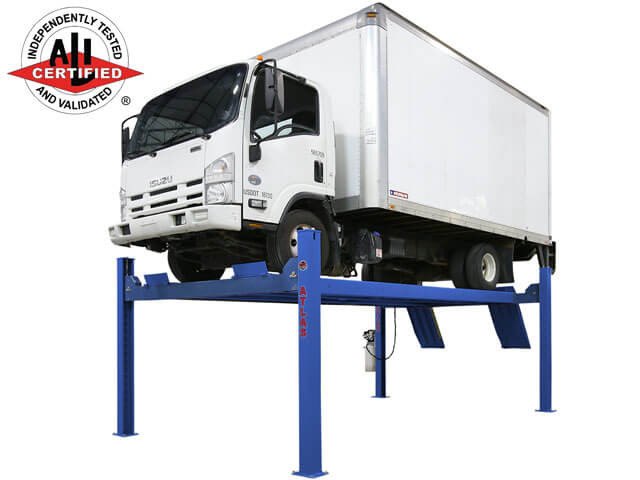

14,000 lb ALI-certified, commercial-grade four-post. Extra tall, wide and long for trucks, vans and light-to-medium commercial vehicles, with tracks for a rolling bridge jack.
| Capacity | 14,000 lbs |
| Lifting Height | 76 1/2" |
| Clearance Under Runways | 69 1/2" |
| Max Wheelbase | 184" |
| Power | 220V single phase, 30A |
| Warranty | 5-yr structural / 2-yr cylinders / 1-yr power unit |
14,000 lb commercial-grade four-post with a 4-HP power unit, air-operated lock release and a 197" maximum wheelbase for long trucks and vans.
| Capacity | 14,000 lbs |
| Lifting Height | 80" |
| Clearance Under Runways | 71 1/4" |
| Max Wheelbase | 197" |
| Power | 220V single phase, 30A |
| Warranty | 1-yr structural / 1-yr power unit |
Heavy-duty, commercial-grade 12,000 lb four-post: extra tall, wide and long, with diamond-plated runways and tracks for a rolling bridge jack.
| Capacity | 12,000 lbs |
| Lifting Height | 77 3/4" |
| Clearance Under Runways | 70 1/4" |
| Max Wheelbase | 185" |
| Power | 220V single phase, 30A |
| Warranty | 5-yr structural / 2-yr cylinders / 1-yr power unit |
12,000 lb commercial-grade four-post alignment lift with built-in slip plates and turntables, plus all the heavy-duty features of the Atlas 412.
| Capacity | 12,000 lbs |
| Alignment | Slip plates + turntables |
| Lifting Height | 77 3/4" |
| Max Wheelbase | 185" |
| Power | 220V single phase, 30A |
| Warranty | 5-yr structural / 2-yr cylinders / 1-yr power unit |
ALI-certified 14,000 lb open-front alignment lift with extra-long runways, built-in slip plates and turntables, and an ALLY AL3000 power unit.
| Capacity | 14,000 lbs |
| Alignment | Slip plates + turntables |
| Runway Length | 223 1/2" |
| Max Wheelbase | 203" |
| Power | 220V single phase, 30A |
| Warranty | 5-yr structural / 2-yr cylinders / 1-yr power unit |
Tell us about your space and what you want to lift or park. We'll recommend the right four-post lift.
Four-post lifts are ideal for alignments, oil changes, inspections, heavier trucks and vehicle storage. The vehicle sits on its wheels, so there's no setup and it's very stable.
Yes. That's one of the main reasons people buy them. Raise one vehicle and park another underneath. Clearance under the runways ranges from 66¼" to 81¼" depending on the model.
The Atlas Apex 9 and Atlas Garage Pro 8000 run on 110V with a 30A breaker, and the Performance Hoist PH8S runs on 110V with a 20A breaker. The commercial models (Atlas Platinum PVL-14, Atlas 414, Atlas 412, Atlas 412A and Atlas Platinum PVL14OF-EXT) run on 220V single phase with a 30A breaker, and most also need an external air supply for the lock release.
Yes, with a bridge jack (rolling jack) to lift the wheels off the runways. Ask us about jack options for the lift you choose.
Yes. $0-down lease-to-own financing is available through Lease Link Canada, with terms up to 60 months. See financing options.
