Atlas Platinum PVL-12 Blue — Vehicle Lift in Victoria BC | SVI Automotive Equipment
Two-Post Overhead · ALI Certified

Atlas Platinum PVL-12 Blue

An ALI-certified 12,000 lb overhead two-post lift built for long-wheelbase trucks and passenger cars.

OverviewFeaturesSpecsWarranty

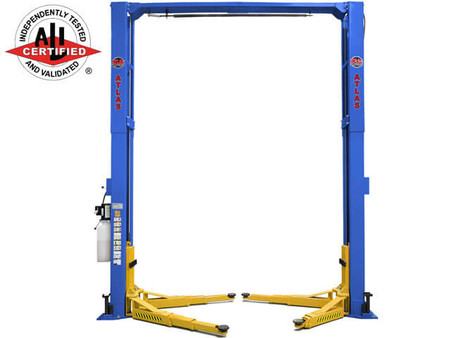

Atlas Platinum PVL-12 Blue vehicle lift

The Atlas Platinum PVL-12 Blue is an ALI-certified overhead 12,000 lb two-post lift designed to handle both long-wheelbase trucks and passenger cars. Its symmetric columns sit almost 123" apart with over 108" of drive-through space, so even the widest vehicles fit between the posts.

12,000 lbsALI CertifiedAtlas WarrantyIn Stock · Vancouver Island

$0-down lease-to-own financing available — see options. Authorized Atlas dealer with professional installation across Vancouver Island.

Atlas Automotive Equipment
Authorized Atlas Automotive Equipment Dealer
Every Atlas lift is ALI-certified where applicable, covered by manufacturer warranty, and backed by SVI's local installation and service.

About the Atlas Platinum PVL-12 Blue

Power comes from an ALLY Hydraulic AL3500 power unit, certified by MET Laboratories for electrical compliance in Canada and the United States. A single-point lock release and automatic arm restraints keep day-to-day operation simple.

The overall height adjusts to 13' 9" or 14' 9" to suit your ceiling, and it ships with a free 8-piece truck adapter set and adapter holder. It needs at least 6" of 3,000 psi concrete, and SVI checks your slab, ceiling and power before install.

Built-In Advantages

ALI-certified 12,000 lb overhead two-post lift
Symmetric columns almost 123" apart for wide vehicles
Over 108" of drive-through space
Adjustable overall height: 13' 9" or 14' 9"
ALLY Hydraulic AL3500 power unit, MET Labs certified
Automatic arm restraints and single-point lock release
Free 8-piece truck adapter set with adapter holder
Professional installation available

Full Specs

Lifting Capacity12,000 lbs
TypeTwo-post overhead
ColumnsSymmetric, 6mm steel, 7 1/2" x 14 1/2"
Max Lifting Height73 5/8" (85 1/2" with adapters)
Min Arm Height4 1/2"
Overall HeightAdjustable: 165" (13' 9") or 177" (14' 9")
Inside Columns122 5/8"
Drive-Thru109 5/8"
Overall Floor Width150 3/8"
Power UnitALLY Hydraulic AL3500 (MET Labs certified)
Power220V single phase, 30A breaker
AdaptersFree 8-piece truck adapter set + adapter holder
Concrete6" minimum, 3,000 psi
CertificationALI Certified
Warranty5 yr structural / 2 yr cylinders / 1 yr power unit

Coverage

Warranty Information

Every Atlas lift supplied and installed by SVI Automotive Equipment is covered by the Atlas manufacturer warranty and backed by our local service across Vancouver Island.

Standard Manufacturer Warranty

  • 5 years on structural components
  • 2 years on hydraulic cylinders
  • 1 year on electric / air-hydraulic power units
  • 90 days on wear items

Optional Extended Warranty

Atlas offers two extended-warranty programs you can add at purchase, covering parts including hydraulic hoses, fittings, pumps, and cylinders:

  • BLUE 2+ — 2-year extended coverage
  • PLATINUM 3+ — 3-year extended coverage

Ask us which program fits your shop. Warranty terms are set by Atlas Automotive Equipment and subject to their terms and conditions (the limited warranty covers parts, not labour); SVI Automotive Equipment handles local warranty service and support.

More Lifts

Other Vehicle Lifts

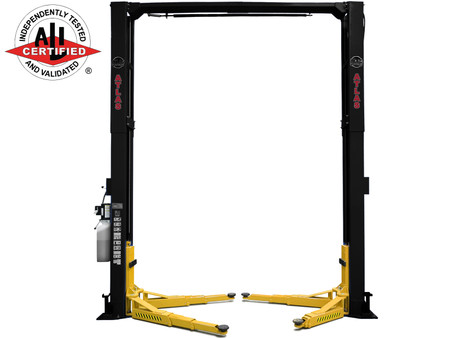

2-Post LiftAtlas Platinum PVL-12 Black
