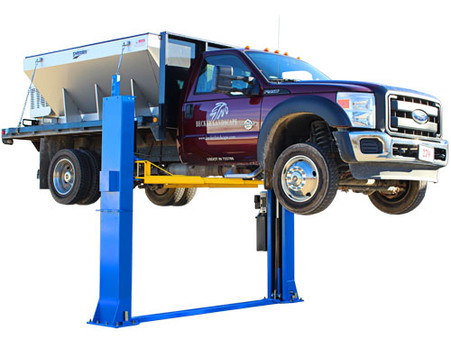

The Atlas BP12000 is a commercial-grade 12,000 lb two-post bottom-plate lift for shops that need serious capacity but don't have the ceiling height for an overhead lift.

The Atlas BP12000 is a commercial-grade 12,000 lb two-post bottom-plate lift for shops that need serious capacity but don't have the ceiling height for an overhead lift. Oversized columns and symmetric three-stage arms give it the strength and reach to handle heavier trucks while staying low-profile.
$0-down lease-to-own financing available — see options. Authorized Atlas dealer with professional installation across Vancouver Island.
A single-point lock release keeps operation smooth, and it can be installed at either of two width settings, to fit wider trucks or trailers or to let you drive between the columns. Installed and serviced locally by SVI, backed by Atlas warranty.
For a commercial shop with a lower ceiling that still needs to lift heavy, the Atlas BP12000 is the answer — full 12,000 lb capability in a bottom-plate package, with the flexibility to handle wide trucks and trailers.
| Lifting Capacity | 12,000 lbs |
| Type | Two-post bottom plate, commercial grade |
| Overall Height | 122 1/2" (10' 2 1/2") |
| Max Lift Height | 77 1/2" (88 1/2" with adapters) |
| Min Arm Height | 4" |
| Drive-Thru | 103 5/8" or 109" (two install widths) |
| Inside Columns | 118 1/8" or 123 1/2" |
| Columns | 8 3/4" x 14", 6mm steel |
| Arms | Symmetric three-stage |
| Adapters | Free 12-piece truck adapter set |
| Power | 220V single phase, 30A breaker |
| Concrete | 6" minimum, 3,000 psi |
| Warranty | 5 yr structural / 2 yr cylinders / 1 yr power unit |
Every Atlas lift supplied and installed by SVI Automotive Equipment is covered by the Atlas manufacturer warranty and backed by our local service across Vancouver Island.
Atlas offers two extended-warranty programs you can add at purchase, covering parts including hydraulic hoses, fittings, pumps, and cylinders:
Ask us which program fits your shop. Warranty terms are set by Atlas Automotive Equipment and subject to their terms and conditions (the limited warranty covers parts, not labour); SVI Automotive Equipment handles local warranty service and support.
