Atlas Platinum PVL-15 — Vehicle Lift in Victoria BC | SVI Automotive Equipment
Two-Post Overhead · ALI Certified

Atlas Platinum PVL-15

A 15,000 lb ALI-certified, commercial-grade overhead two-post lift for long-wheelbase trucks and service trucks.

OverviewFeaturesSpecsWarranty

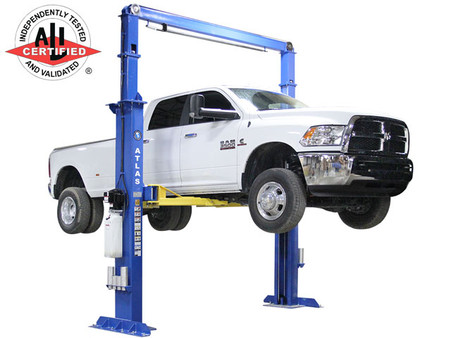

Atlas Platinum PVL-15 vehicle lift

The Atlas Platinum PVL-15 is a 15,000 lb ALI-certified, commercial-grade overhead two-post lift designed for long-wheelbase trucks and service trucks. Heavy 8mm steel construction and an ALLY Hydraulic AL2300 power unit (certified by MET Laboratories) give it the strength to run hard, day in and day out.

15,000 lbsALI CertifiedAtlas WarrantyIn Stock · Vancouver Island

$0-down lease-to-own financing available — see options. Authorized Atlas dealer with professional installation across Vancouver Island.

Atlas Automotive Equipment
Authorized Atlas Automotive Equipment Dealer
Every Atlas lift is ALI-certified where applicable, covered by manufacturer warranty, and backed by SVI's local installation and service.

About the Atlas Platinum PVL-15

The overall height is 174 1/2" (14' 6 1/2"), and an optional Height Extension Kit adds 2 feet for taller vehicles. It lifts to 72 3/4" (87 1/2" with truck adapters) with 107 1/2" of drive-through and 36" to 52" arms.

A dual-point lock release, professional-grade arm lock restraints and an included truck adapter set round it out. ALI-certified, backed by Atlas warranty, and installed and serviced by SVI across Vancouver Island.

Built-In Advantages

15,000 lb ALI-certified overhead two-post lift
Heavy 8mm steel construction
ALLY Hydraulic AL2300 power unit, MET Labs certified
Dual-point lock release
Professional-grade arm lock restraint system
Optional Height Extension Kit adds 2 ft of height
Truck adapter set and mounting hardware included
ALI certified

Full Specs

Lifting Capacity15,000 lbs
TypeTwo-post overhead, commercial grade
Overall Height174 1/2" (14' 6 1/2"); +2 ft with optional extension kit
Max Lifting Height72 3/4" (87 1/2" with adapters)
Min Pad Height5 3/4"
Column Clearance119 1/4" (9' 11 1/4")
Drive-Thru107 1/2"
Arm Length36" to 52"
Overall Width154 1/2" with motor
Steel Thickness8mm
Power UnitALLY Hydraulic AL2300 (MET Labs certified)
Power220V single phase, 30A breaker
CertificationALI Certified
Warranty5 yr structural / 2 yr cylinders / 1 yr power unit

Coverage

Warranty Information

Every Atlas lift supplied and installed by SVI Automotive Equipment is covered by the Atlas manufacturer warranty and backed by our local service across Vancouver Island.

Standard Manufacturer Warranty

  • 5 years on structural components
  • 2 years on hydraulic cylinders
  • 1 year on electric / air-hydraulic power units
  • 90 days on wear items

Optional Extended Warranty

Atlas offers two extended-warranty programs you can add at purchase, covering parts including hydraulic hoses, fittings, pumps, and cylinders:

  • BLUE 2+ — 2-year extended coverage
  • PLATINUM 3+ — 3-year extended coverage

Ask us which program fits your shop. Warranty terms are set by Atlas Automotive Equipment and subject to their terms and conditions (the limited warranty covers parts, not labour); SVI Automotive Equipment handles local warranty service and support.
