Atlas Platinum PVL-9BP — Vehicle Lift in Victoria BC | SVI Automotive Equipment
Two-Post Baseplate · ALI Certified

Atlas Platinum PVL-9BP

Low ceiling? No problem.

OverviewFeaturesSpecsWarranty

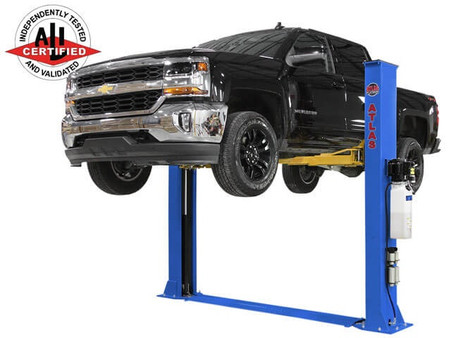

Atlas Platinum PVL-9BP vehicle lift

Low ceiling? No problem. The Atlas Platinum PVL-9BP is a 9,000 lb ALI-certified baseplate two-post lift designed for professional service centers. Its open-top design and 9' 3 1/8" columns make it ideal for garages with low ceilings, where an overhead lift simply won't clear.

9,000 lbsALI CertifiedAtlas WarrantyIn Stock · Vancouver Island

$0-down lease-to-own financing available — see options. Authorized Atlas dealer with professional installation across Vancouver Island.

Atlas Automotive Equipment
Authorized Atlas Automotive Equipment Dealer
Every Atlas lift is ALI-certified where applicable, covered by manufacturer warranty, and backed by SVI's local installation and service.

About the Atlas Platinum PVL-9BP

Despite the lower profile, it doesn't give up capability: dual hydraulic chain-drive cylinders, a Secondary Lock System, symmetric arms and an ALLY Hydraulic AL3000 power unit. It lifts the most common cars on the market and has the capacity for full-size pickups.

It ships with a free 8-piece truck adapter set, automatic arm restraints and mounting hardware. It needs at least 6" of 3,000 psi concrete, and SVI confirms your slab, ceiling and power before install.

Built-In Advantages

Open-top baseplate design for low ceilings: 9' 3 1/8" columns
9,000 lb capacity, handles full-size pickups
Dual hydraulic chain-drive cylinders (chain-over-roller)
Secondary Lock System (SLS)
Dual-point lock release
ALLY Hydraulic AL3000 power unit
Free 8-piece truck adapter set and automatic arm restraints
ALI certified

Full Specs

Lifting Capacity9,000 lbs
TypeTwo-post baseplate (low ceiling)
Overall Height111 1/8" (9' 3 1/8")
Max Lifting Height74 3/4" (83 3/4" with adapters)
Min Arm Height4 1/2"
Drive-Thru97 5/8"
Inside Columns111 3/8"
Overall Floor Width138 5/8"
ArmsSymmetric
Lock ReleaseDual point
Power UnitALLY Hydraulic AL3000
Power220V single phase, 30A breaker
Concrete6" minimum, 3,000 psi
CertificationALI Certified
Warranty5 yr structural / 2 yr cylinders / 1 yr power unit

Coverage

Warranty Information

Every Atlas lift supplied and installed by SVI Automotive Equipment is covered by the Atlas manufacturer warranty and backed by our local service across Vancouver Island.

Standard Manufacturer Warranty

  • 5 years on structural components
  • 2 years on hydraulic cylinders
  • 1 year on electric / air-hydraulic power units
  • 90 days on wear items

Optional Extended Warranty

Atlas offers two extended-warranty programs you can add at purchase, covering parts including hydraulic hoses, fittings, pumps, and cylinders:

  • BLUE 2+ — 2-year extended coverage
  • PLATINUM 3+ — 3-year extended coverage

Ask us which program fits your shop. Warranty terms are set by Atlas Automotive Equipment and subject to their terms and conditions (the limited warranty covers parts, not labour); SVI Automotive Equipment handles local warranty service and support.
