Four-Post · Commercial Grade

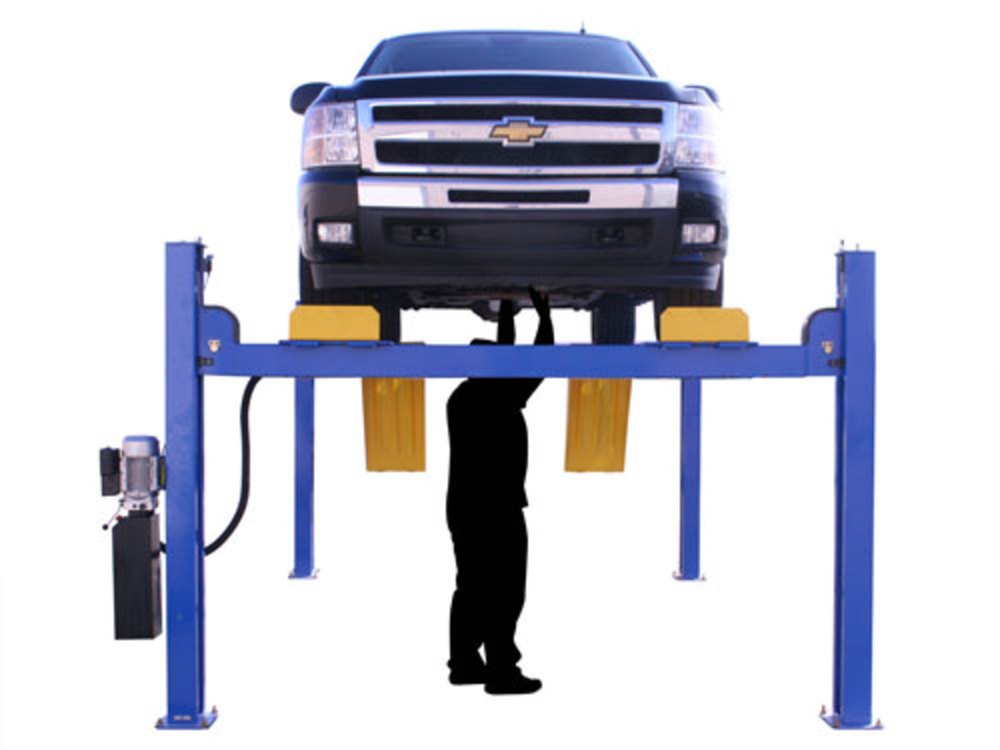

Atlas 414
A 14,000 lb commercial-grade four-post lift with a 4-HP power unit and air-operated lock release.
A 14,000 lb commercial-grade four-post lift with a 4-HP power unit and air-operated lock release.
The Atlas 414 is a 14,000 lb four-post lift designed and built to commercial-grade standards. A high-strength cable system with an oversized under-runway hydraulic cylinder, driven by a 220V single-phase 4-HP power unit, raises and lowers it.
Available to order through SVI: call or text for pricing and lead time. $0-down lease-to-own financing available — see options.
The lock ladder column design, air-operated single-point lock release and automatic shut-off switch keep day-to-day operation simple. With 71 1/4" of clearance under the runways and a 197" maximum wheelbase, it has room for long trucks and vans.
Drive-through off-ramps are available as an option, and mounting hardware is included. It needs at least 6" of 3,000 psi concrete, an external air supply (85–115 psi) and a 220V, 30A circuit.
| Lifting Capacity | 14,000 lbs |
| Type | Four-post, commercial grade |
| Lifting Height | 80" (6' 8") |
| Clearance Under Runways | 71 1/4" |
| Column Height | 91 1/8" |
| Overall Length | 255" with ramps |
| Overall Width | 130 7/8" (138 7/8" with motor) |
| Runway Length / Width | 208 5/8" / 20" |
| Width Between Runways | 46 7/8" |
| Maximum Wheelbase | 197" |
| Drive-Thru | 102 1/8" |
| Air Supply | 85–115 psi (external) |
| Power | 220V single phase, 4 HP, 30A breaker |
| Concrete | 6" minimum, 3,000 psi |
| Warranty | 1 yr structural / 1 yr power unit & components |
Every Atlas lift supplied and installed by SVI Automotive Equipment is covered by the Atlas manufacturer warranty and backed by our local service across Vancouver Island.
Atlas offers two extended-warranty programs you can add at purchase, covering parts including hydraulic hoses, fittings, pumps, and cylinders:
Ask us which program fits your shop. Warranty terms are set by Atlas Automotive Equipment and subject to their terms and conditions (the limited warranty covers parts, not labour); SVI Automotive Equipment handles local warranty service and support.

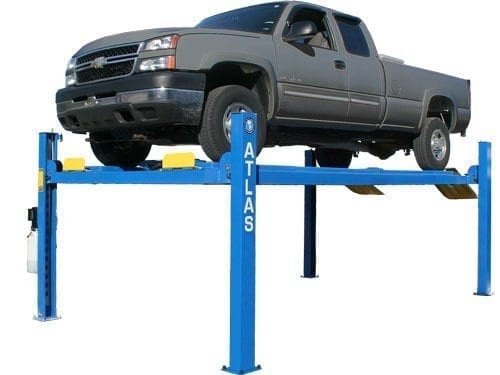

Heavy-duty, commercial-grade 12,000 lb four-post: extra tall, wide and long, with diamond-plated runways and tracks for a rolling bridge jack.
View Lift

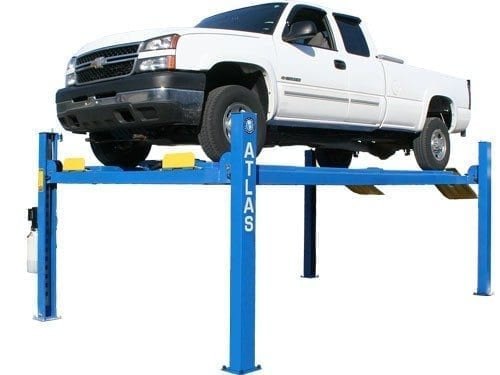

12,000 lb commercial-grade four-post alignment lift with built-in slip plates and turntables, plus all the heavy-duty features of the Atlas 412.
View Lift

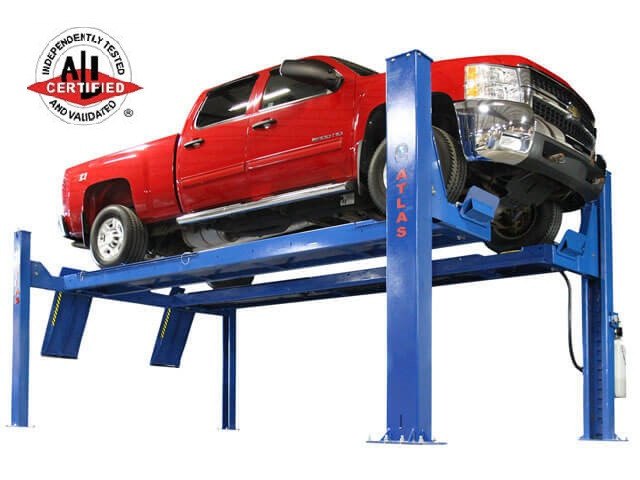

ALI-certified 14,000 lb open-front alignment lift with extra-long runways, built-in slip plates and turntables, and an ALLY AL3000 power unit.
