Portable · Open-Center Mid-Rise

Atlas Kwik Bay

A free-standing, commercial-grade 7,000 lb portable mid-rise lift with an open center.

OverviewFeaturesSpecsWarranty

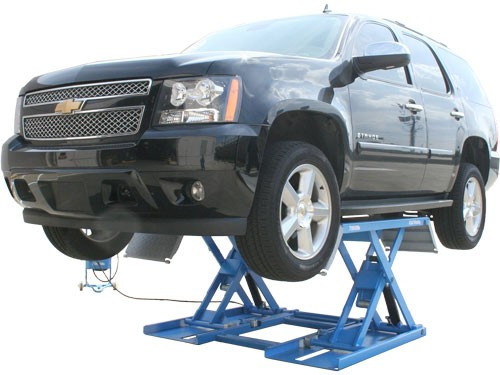

Atlas Kwik Bay portable mid-rise lift

The Atlas Kwik Bay is a free-standing, commercial-grade 7,000 lb portable scissor lift, built for body shops and wheel service specialists that need extra lifting height. Drive over the scissor ramps, set the rubber positioning blocks under the vehicle's lifting points, and raise it to a comfortable working height of up to 41".

7,000 lbsAtlas WarrantyIn Stock · Vancouver Island

$0-down lease-to-own financing available — see options. Authorized Atlas dealer with professional installation across Vancouver Island.

Atlas Automotive Equipment
Authorized Atlas Automotive Equipment Dealer
Every Atlas lift is ALI-certified where applicable, covered by manufacturer warranty, and backed by SVI's local installation and service.

About the Atlas Kwik Bay

Its open middle gives you access to many areas of the underside that portable lifts with a full superstructure block. Dual power cylinders and solid, air-operated safety lock bars keep it rock solid at every lock position, and zerk grease fittings at each hinge point keep it moving freely.

The 120V power unit sits on a movable cart that also moves the lift. It needs a 30A breaker, and it ships with a short pigtail (no plug) to be wired to a disconnect or plug by an electrician. One set of four positioning blocks and a support bar kit are included; Atlas requires the support bars for the warranty to be valid.

Built-In Advantages

Free-standing, portable 7,000 lb mid-rise lift
Open center for access to more of the underside
Dual power cylinders with air-operated safety locks
Ramps lock horizontally to extend runway length
120V power unit on a movable cart
Four positioning blocks and support bar kit included
Zerk grease fittings at every hinge point
Ideal for body shops and wheel service

Full Specs

Lifting Capacity7,000 lbs
TypePortable open-center mid-rise scissor lift
Max Lift Height41" (with positioning blocks)
Min Height4 1/4"
Overall Size77 1/2" L x 72" W
Platform Size57 1/2" L x 19 1/4" W
Between Runways33 1/2"
Power120V single phase, 30A breaker required
Air Supply85–120 psi
Included4 positioning blocks + support bar kit
Warranty2 yr structural / 2 yr power unit & components

Coverage

Warranty Information

Every Atlas lift supplied and installed by SVI Automotive Equipment is covered by the Atlas manufacturer warranty and backed by our local service across Vancouver Island.

Standard Manufacturer Warranty

  • 2 years on structural components
  • 2 years on power units, cylinders and major components
  • 90 days on wear items

The included support bars are required for the Atlas warranty to be valid.

Warranty terms are set by Atlas Automotive Equipment and subject to their terms and conditions (the limited warranty covers parts, not labour); SVI Automotive Equipment handles local warranty service and support.

More Lifts

Other Vehicle Lifts

Mid-Rise & PortableAtlas Versa Extended Mid-Rise Lift
Atlas Vehicle Lift

Atlas Versa Extended Mid-Rise Lift

Free-standing 7,000 lb portable mid-rise, designed and made in Europe.

View Lift
4-Post LiftAtlas Garage Pro 8000
Atlas Vehicle Lift

Atlas Garage Pro 8000

8,000 lb four-post storage and service lift for homeowners and restoration shops.

View Lift

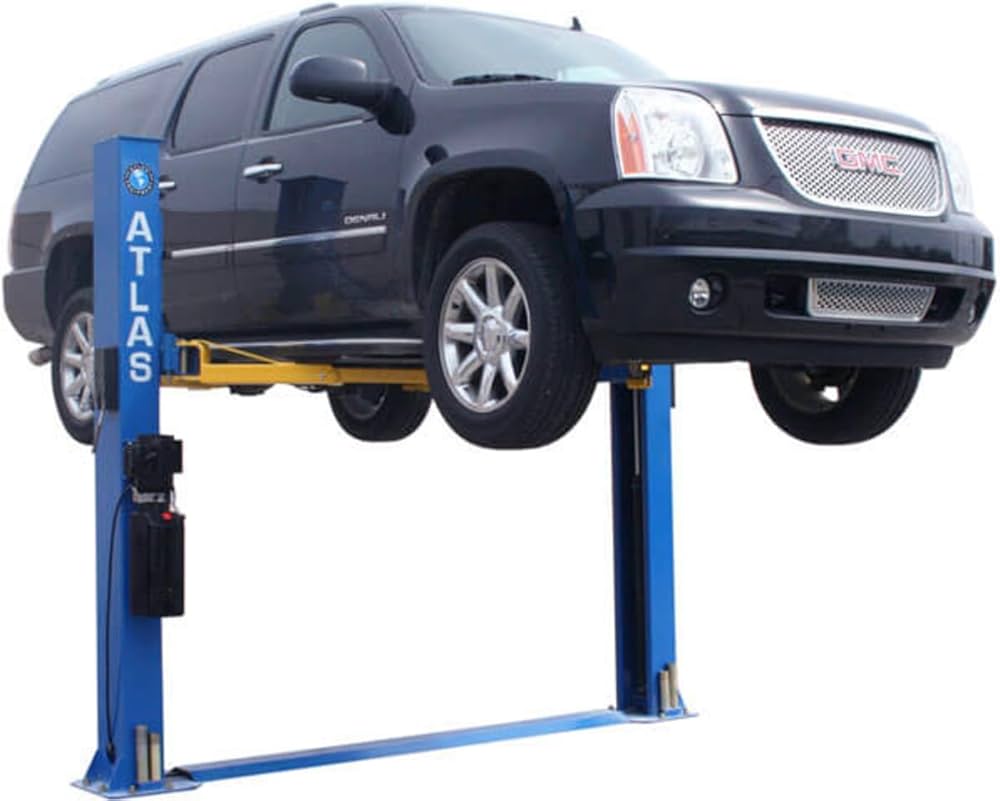

2-Post LiftAtlas BP8000
