Alignment Scissor Lift · Wheels-Free
Atlas 12AWFSL
A 12,000 lb alignment scissor lift with a built-in wheels-free jack system.
A 12,000 lb alignment scissor lift with a built-in wheels-free jack system.

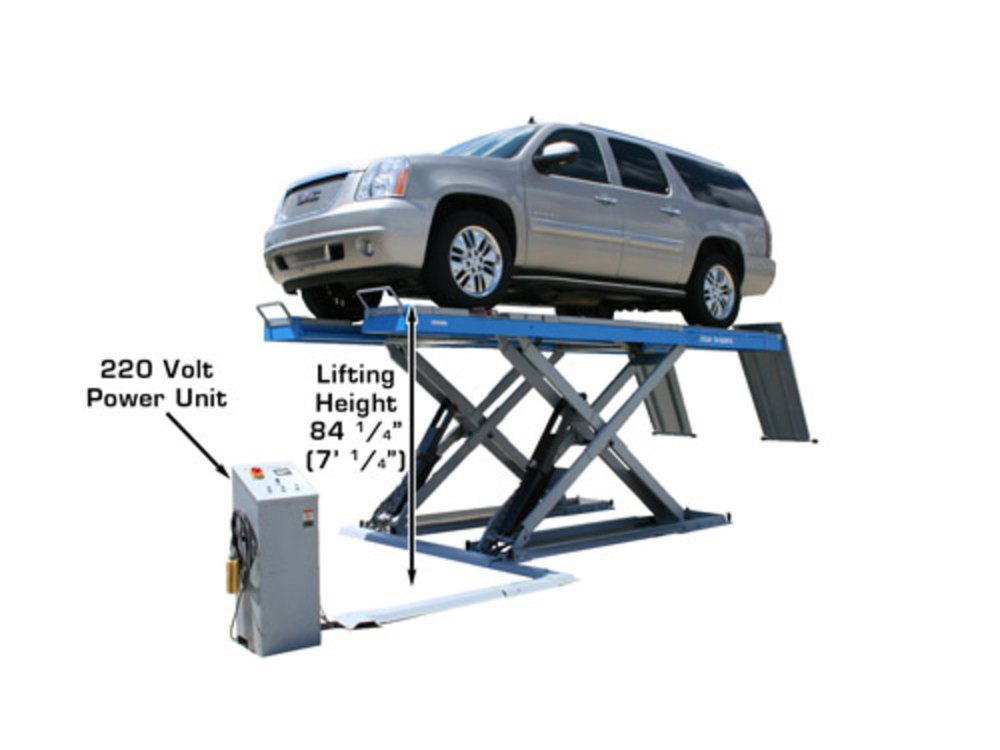

The Atlas 12AWFSL is a 12,000 lb alignment scissor lift with a built-in wheels-free system, so you can lift the vehicle off its tires right on the runways. It can be surface-mounted or flush-mounted, and extra-long slip plates align wheelbases from 86" to 172".
Available to order through SVI: call or text for pricing and lead time. $0-down lease-to-own financing available — see options.
The in-ramp wheels-free jack system raises to 17", and the main lift reaches 84 1/4". Precise platform leveling, recessed turntables with covers and 53" approach ramps make it easy to load and align everything from small cars to one-ton dual-rear-wheel pickups.
Mechanical safety locks engage and release by air, and an emergency manual lowering pump, overload valve and lowering speed control are built in. Mounting hardware and an air line kit are included. It runs on 220V single phase with a 30A breaker and is delivered by flat deck.
| Lifting Capacity | 12,000 lbs |
| Type | Alignment scissor lift, wheels-free |
| Lifting Height | 84 1/4" (7' 1/4") |
| Wheels-Free Jack Height | 17" |
| Lowered Height | 11 1/2" |
| Overall Length | 197" (250" with ramps) |
| Overall Width | 86 3/8" |
| Runway Width | 23 3/4" |
| 2-Wheel Alignment Wheelbase | 86" to 172" |
| Locking Positions | 19 |
| Power | 220V single phase, 30A breaker |
| Warranty | 2 yr structural / 2 yr power unit & components |
Every Atlas lift supplied and installed by SVI Automotive Equipment is covered by the Atlas manufacturer warranty and backed by our local service across Vancouver Island.
Warranty terms are set by Atlas Automotive Equipment and subject to their terms and conditions (the limited warranty covers parts, not labour); SVI Automotive Equipment handles local warranty service and support.
