ATLAS PVL14

The Atlas Platinum PVL14 is a four post commercial grade Heavy-Duty lift designed with the professional shop in mind. This lift can accommodate a variety of cars, vans, SUVs, trucks, and even some light & medium duty commercial vehicles.

The Platinum PVL14 uses a high strength cable system (with a under runway oversized hydraulic cylinder) powered by a 220 volt (single phase) power unit to raise and lower the lift. Many competitors use an “old style” chain lifting system with an exposed hydraulic cylinder system. Old style chain lifts are difficult to “level” properly and the exposed hydraulic cylinder is responsible for numerous “door dings”.

The Atlas Platinum PVL14 features “tracks” between the runways to allow the use of a rolling bridge jack (recommended is the Atlas® Platinum RJ7000) on the lift. Rolling jacks sold separately.

The Atlas Platinum PVL14 is also ALI certified and backed by one of the industry’s best warranties for an added peace of mind.

This product features an ALLY Hydraulic AL2650 power unit. This premium power unit is certified by MET Laboratories Inc. for electrical compliance in the United States and Canada. Extra heavy-duty armatures and more motor windings with increased silver metal included in the wires and connections create far less heat generation and allow ALLY Hydraulic power units to maintain constant torque through the lifting process. This power unit also carries an industry leading two-year limited warranty.

The Atlas name has always been a trusted name in the automotive service Industry and you can depend on the Atlas brand for many years to come.

14,000 Lb. Capacity Commercial Grade 4 Post Lift

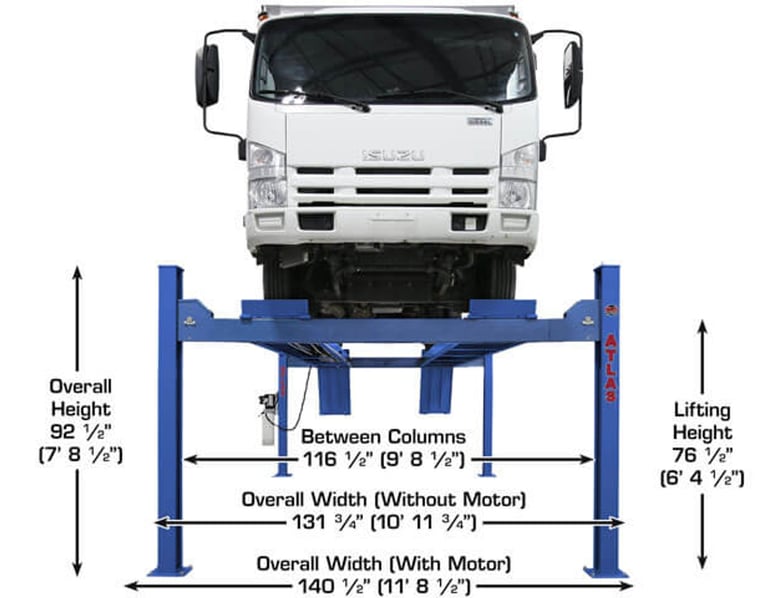

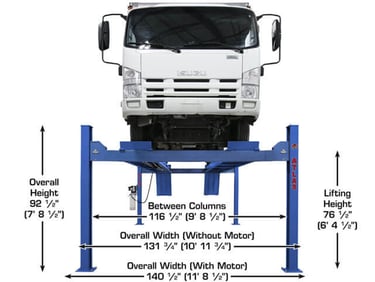

Atlas PVL14 Hoist
Atlas PVL14 Hoist

Features

  • ALI Certified Lift

  • 14,000 lb. Capacity

  • Heavy Duty, Commercial Grade

  • Extra Tall, Extra Wide & Extra Long

  • Adjustable Lock Ladder Design

  • Higher Quality Powder Coat Finish

  • Air Operated Single Point Lock Release (External Air Supply Required)

  • Lock Ladder Design

  • Double Lock Safety System

  • Powder Coat Finish

  • Steel Approach Ramps Included

  • Mounting Hardware Included

  • Standard with Premium ALLY Powerunit

  • 220volt/1phase Electric Operation (Requires a 30amp Breaker)

  • Shipping Weight: 2,800 lbs.

  • 5 yr Structural – 2 yr Hydraulic – 2 yr Powerunit Warranty
