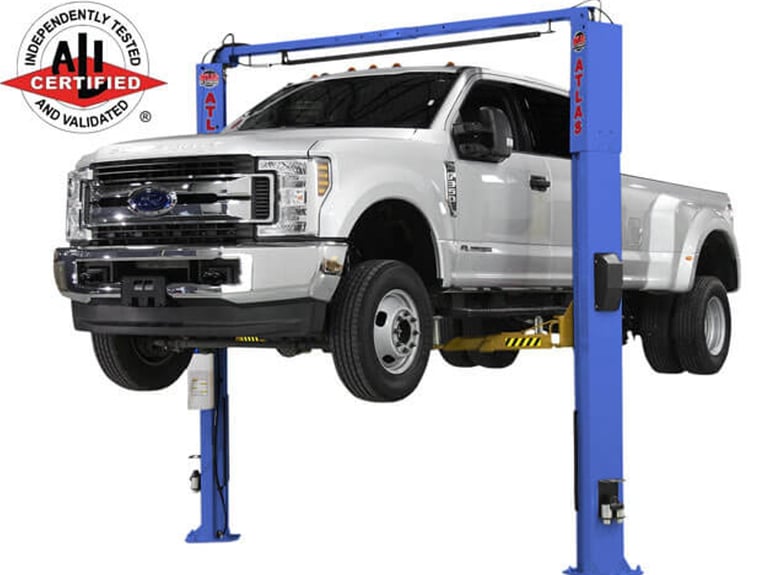

ATLAS PVL 10

The Atlas PVL-10 can be installed with the columns positioned either symmetrically or asymmetrically. When the Apex columns are installed in the asymmetrical configuration, there may be some benefit to open car doors. When the Apex columns are installed in the symmetric configuration there is more width between the columns. Both column configurations offer easy vehicle access and superior vehicle lift point support due to the three stage front arm design.

The Atlas PVL-10 features three (3) stage telescoping front arms, double screw rubber/metal adapters with truck height extensions, protective rubber pads mounted to the carriage , rubber column guards, and a price that cannot be matched.

Symmetric Columns And Super Symmetric Arms

The three stage front arms can be configured in the super-symmetric position when the columns are installed in the symmetric configuration. The Atlas PVL-10 super-symmetric arm configuration allows the customer to position the front arms as they are positioned for the Atlas 9OHSC-SS.

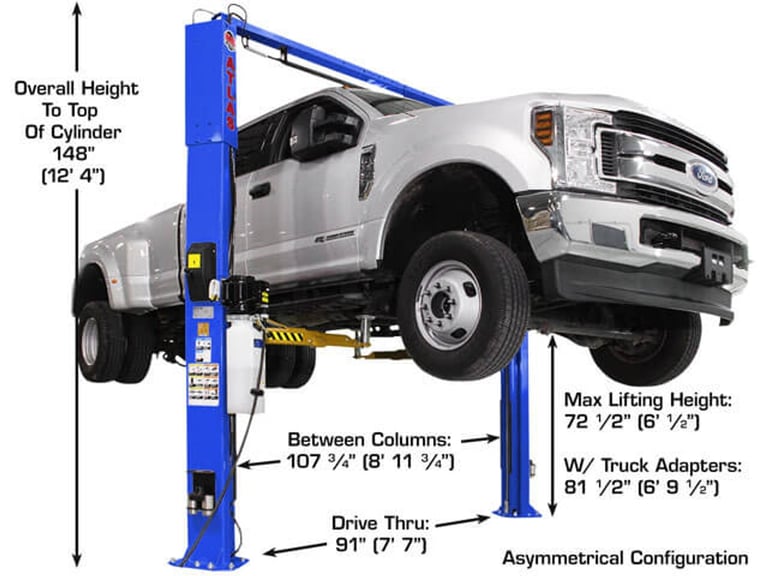

Asymmetric Columns and Arms

When the columns are installed in the asymmetric position, the arms will automatically configure into the asymmetric position allowing the 3-stage front arms to “point” toward the rear of the car. (PV-10P asymmetric arm configuration). If the columns are installed in this asymmetric position, then the front arms cannot be moved into a parallel or symmetric configuration.

Double Screw Up Adapters

Adjustable double screw lift pads are included with the Atlas Apex-10 Plus. Screw up adapters allow the operator to “precisely position” the lift pad in direct contact with the vehicle’s lifting points.

The Atlas name has always been a trusted name in the automotive service Industry and you can depend on the Atlas brand for many years to come.

10,000 Lbs. Symmetric/Asymmetric Adjustable Height 2 Post Overhead Lift
